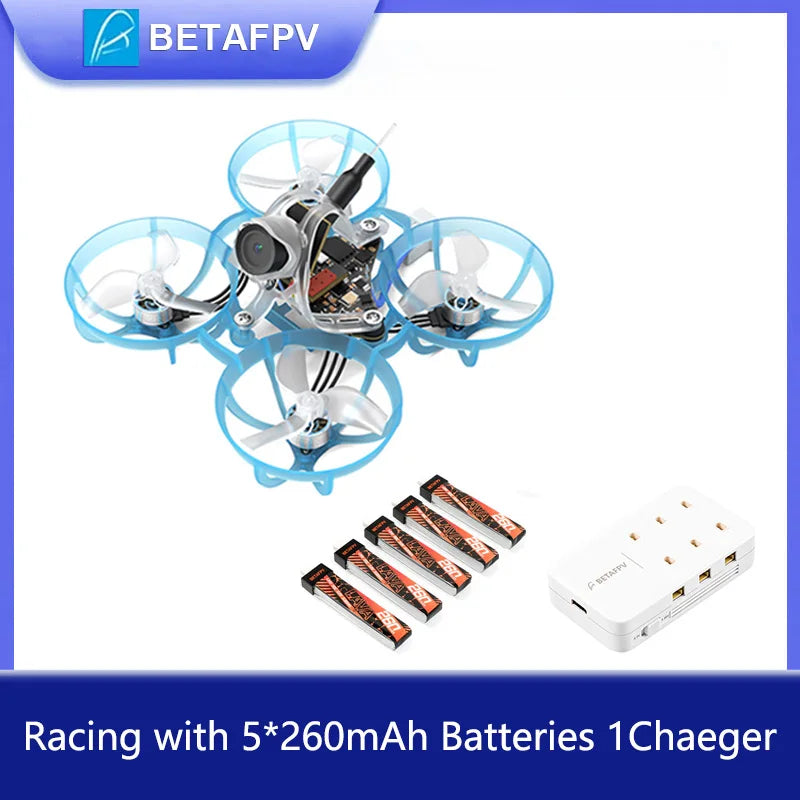

BETAFPV Brushless Whoop Quadcopter Racing Drone ELRS 2.4G Matrix FC
BETAFPV Brushless Whoop Quadcopter Racing Drone ELRS 2.4G Matrix FC
Couldn't load pickup availability

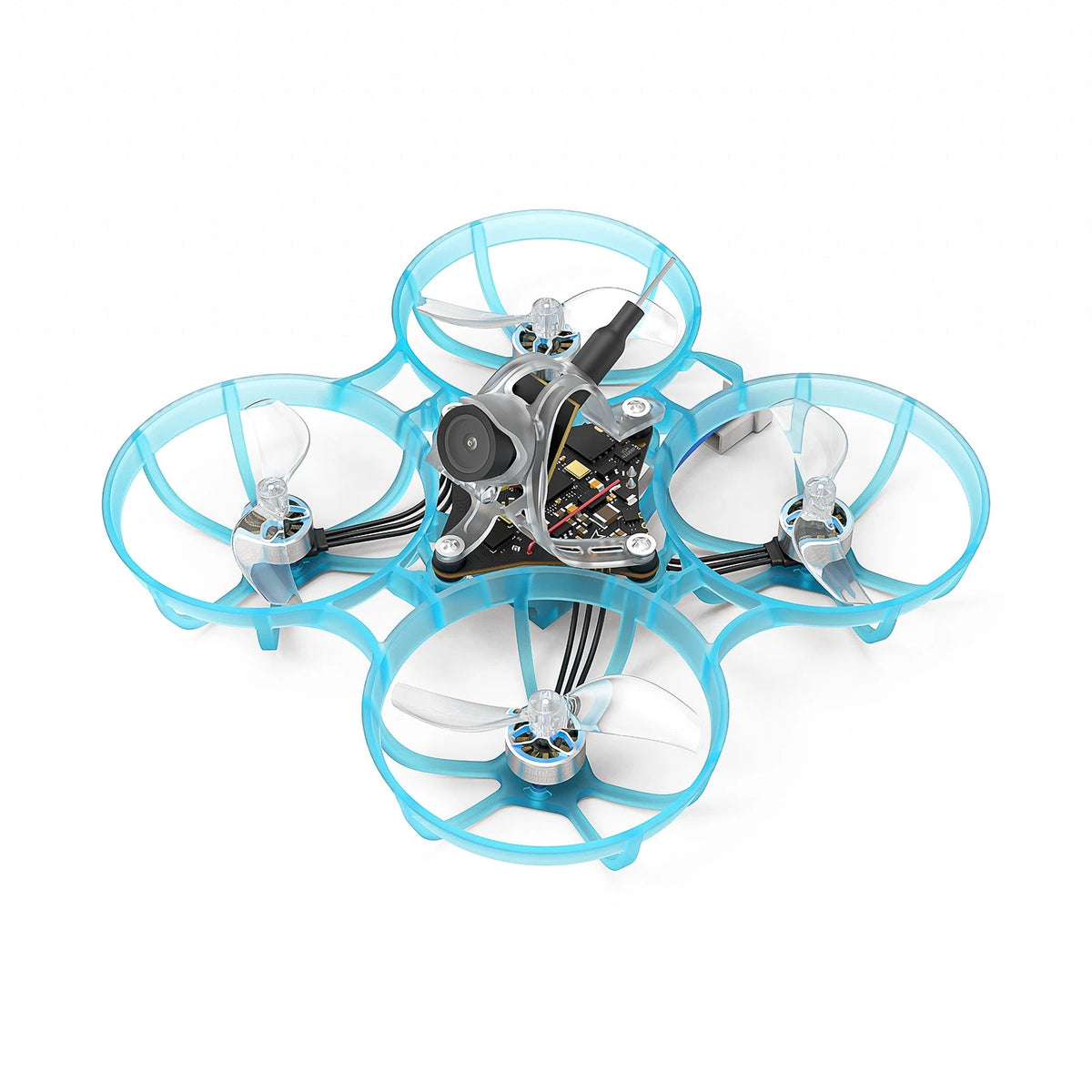

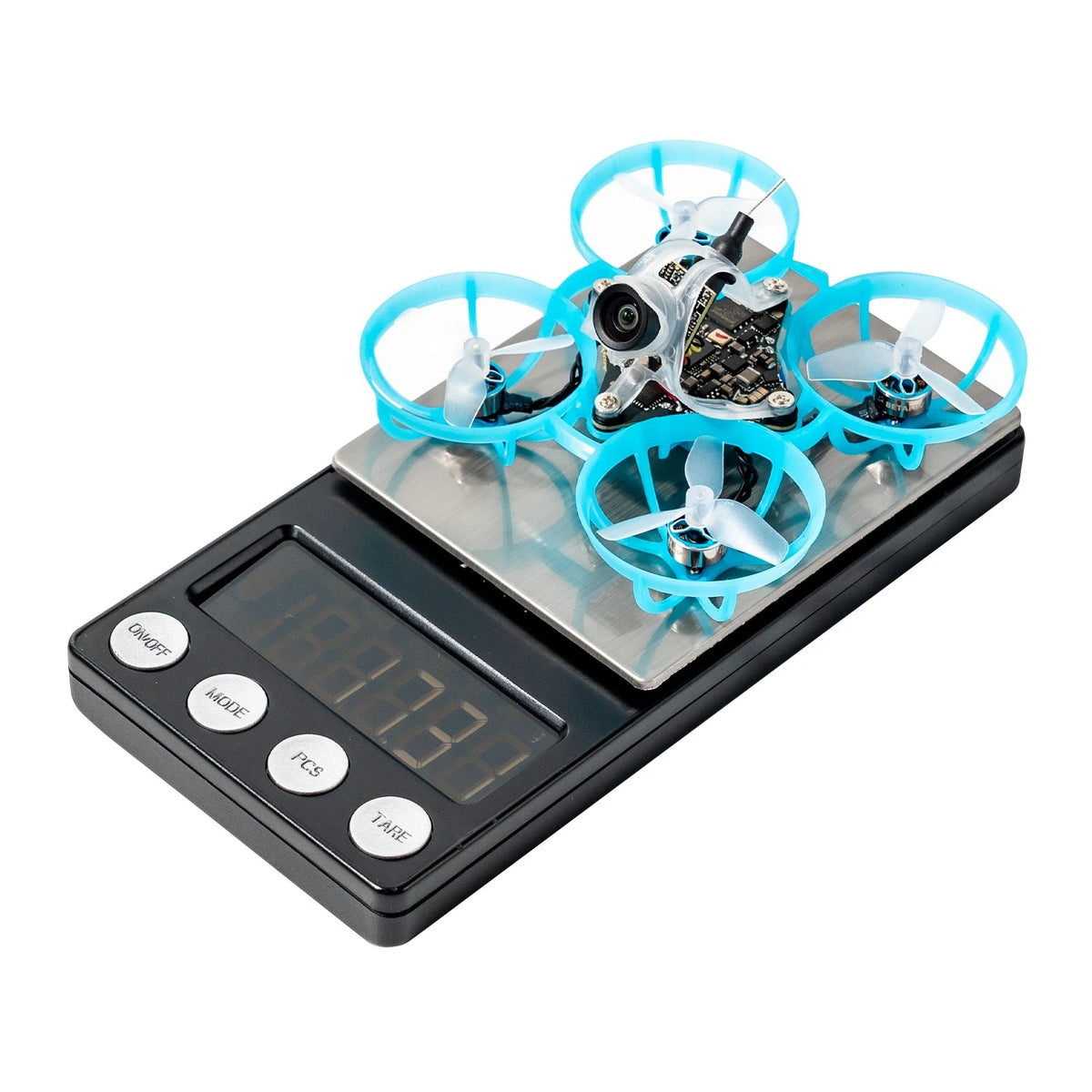

Fly tight indoor lines and quick freestyle moves with the 17.3g BETAFPV Air65 brushless whoop, designed for experienced FPV pilots.
- Lightweight 65mm frame: Its compact wheelbase and low weight give you an agile setup for indoor or outdoor flying.
- ELRS 2.4G control: The onboard receiver and 3.6g Air 5-in-1 flight controller combine flight control, ESC, OSD, receiver and VTX.

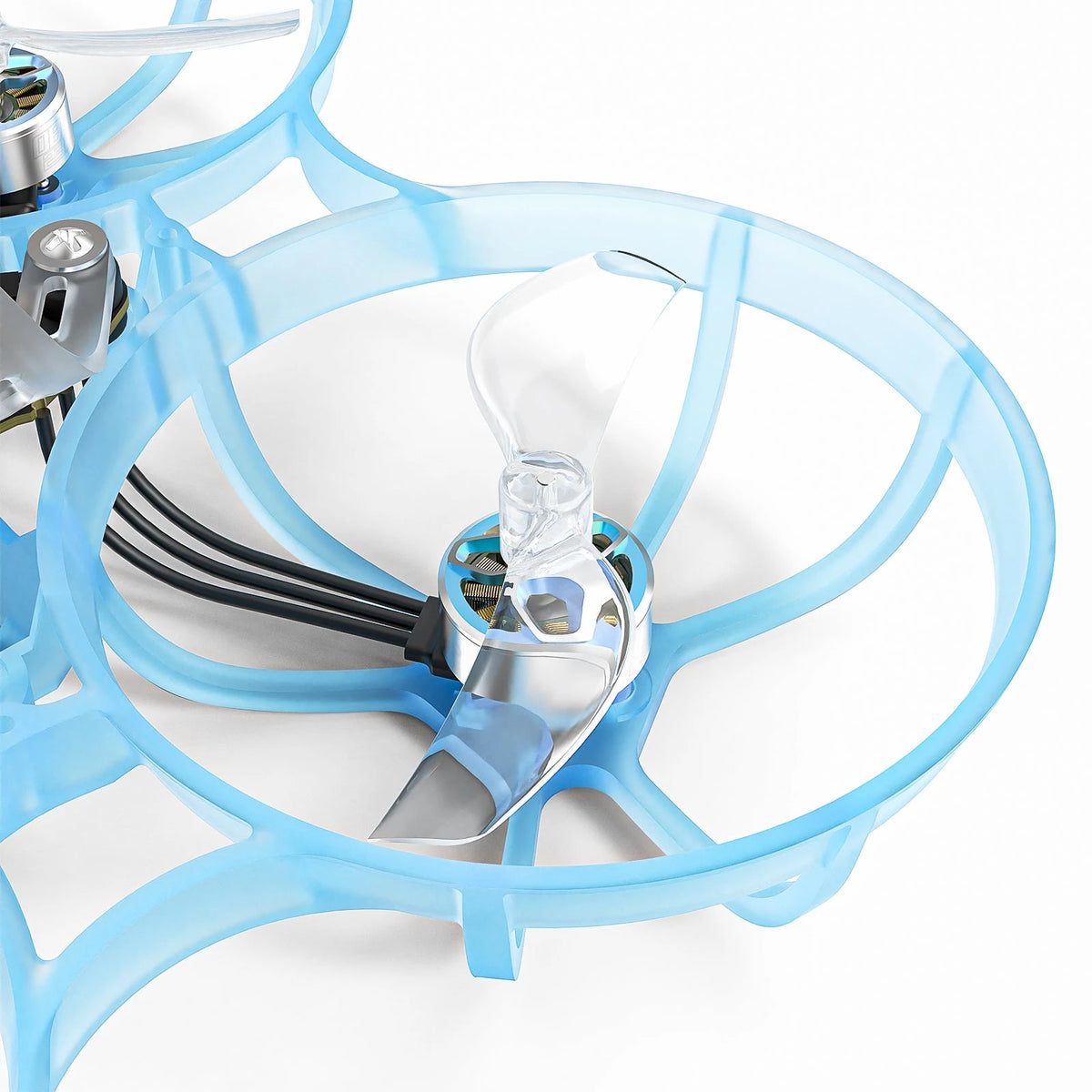

- Choose your flight style: Racing uses 0702SE II 27000KV motors and GF 1219S props; Freestyle uses 23000KV motors and HQ 31mm Ultralight props.

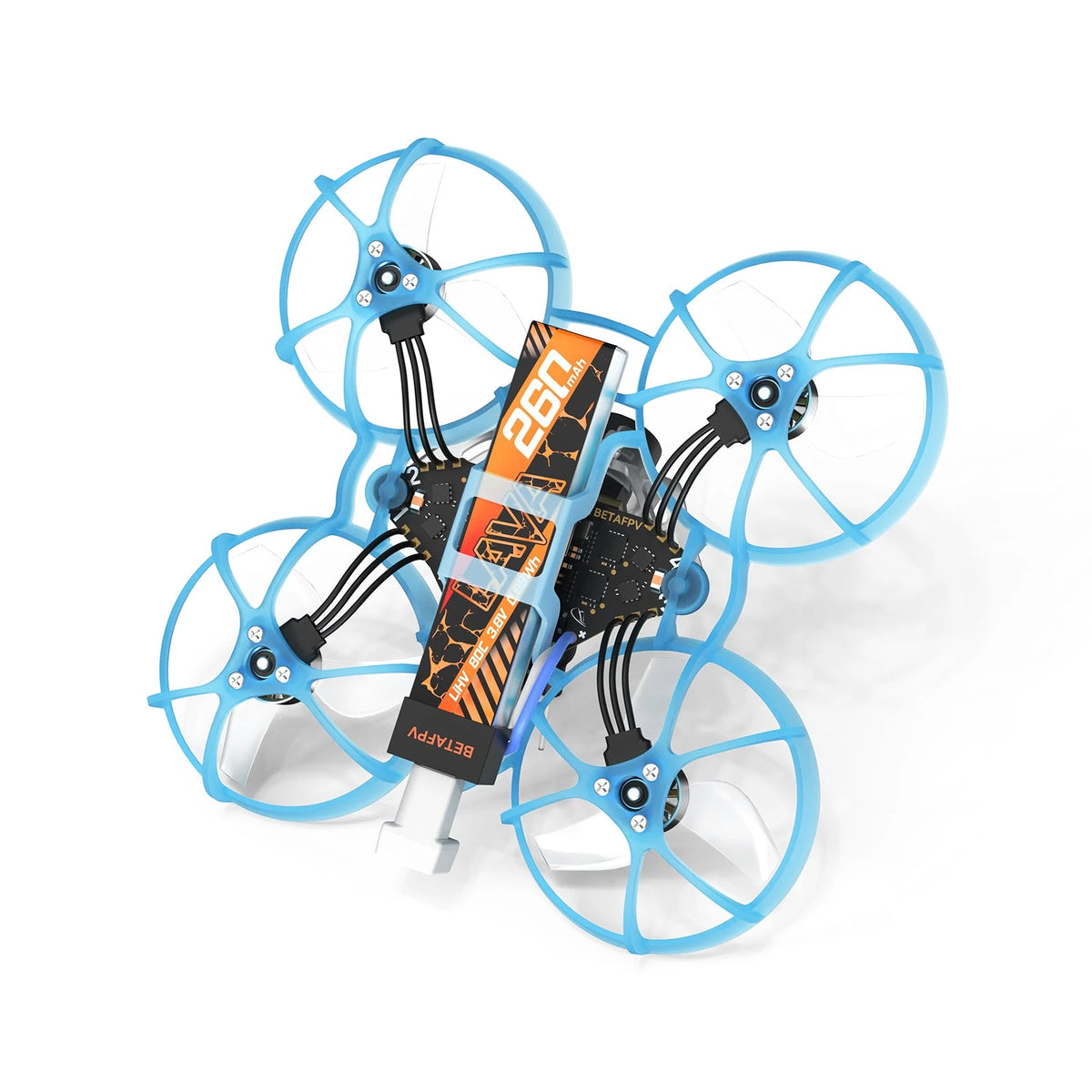

- FPV flight essentials: You get a C03 camera with 480P video, an onboard 5.8G VTX with 25–400mW output, a USB cable and operating instructions. A LAVA 1S 260mAh battery gives about 4 minutes of flight and is sold separately.
Air65 Champion |
Air65 |
Meteor65 |
|
Weight |
17.4g (±0.15g) |
17.3g |
22.8g |
Wheelbase |
65mm |
65mm |
65mm |
Frame |
Air65 Frame |
Air65 Frame |
Meteor65 Micro Frame |
Canopy |
Air Canopy |
Air Canopy |
Canopy for Micro Camera 2022 |
FC & ESC |
Air Brushless Flight Controller (5IN1) |
Air Brushless Flight Controller (5IN1) |
F4 1S 5A FC (Serial ELRS 2.4G) |
VTX |
Onboard 5.8G 25mw~400mw |
Onboard 5.8G 25mw~400mw |
M03 |
Camera |
C03 |
C03 |
C03 |
Motor |
0702 II|30000KV (dual ball bearings) |
Racing Version: 0702SE II|27000KV (brass bushings) |
0802SE|19500KV (brass bushings) |
Props |
GF 1219S 3B |
Racing Version: GF 1219S 3B |
GF 31mm 3B |
Battery Connector |
BT2.0 U Cable Pigtail |
BT2.0 U Cable Pigtail |
BT2.0 |
Recommend Battery |
LAVA 1S 260/300mAh |
LAVA 1S 260/300mAh |
BT2.0 300mAh 30C |
Flight Time |
4min (LAVA 260mAh) |
4min (LAVA 260mAh) |
4min (BT2.0 300mAh) |
RX Version |
Onboard ELRS 2.4G RX |
Onboard ELRS 2.4G RX |
ELRS/Frsky/TBS |
Motor Screws |
PEEK screws |
Steel screws |
Steel screws |
Air75 |
Meteor75 |
|
Weight |
21.0g |
24.9g |
Wheelbase |
75mm |
75mm |
Frame |
Air75 Frame |
Meteor75 Micro Frame |
Canopy |
Air Canopy |
Canopy for Micro Camera 2022 |
FC & ESC |
Air Brushless Flight Controller (5IN1 Version) |
F4 1S 5A FC (Serial ELRS 2.4G) |
VTX |
Onboard 5.8G 25mw - 400mw VTX |
M03 VTX |
Camera |
C03 Camera |
C03 Camera |
Motor |
0802SE | 23000KV |
0802SE | 19500KV |
Props |
Gemfan 40mm 2-Blade |
Gemfan 40mm 2-Blade |
Battery Connector |
